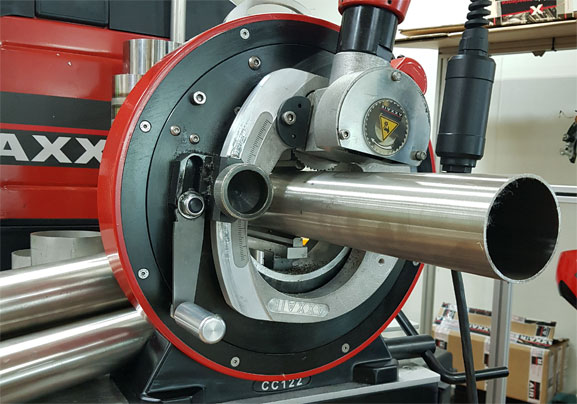

Blade-jaw distance of 2/13.5 mm. Limits vibration and tube distortion
Concentric clamping with 4 jaws in stainless steel, standard, to eliminate tube distortion
Motors: slow, fast, pneumatic
Rotation handle as standard: extends blade life and optimizes cutting quality

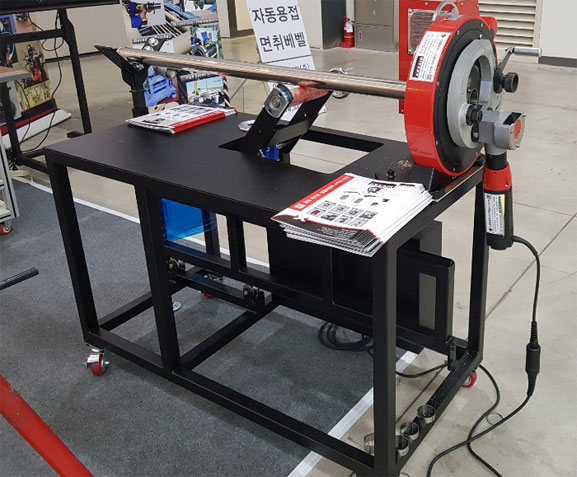

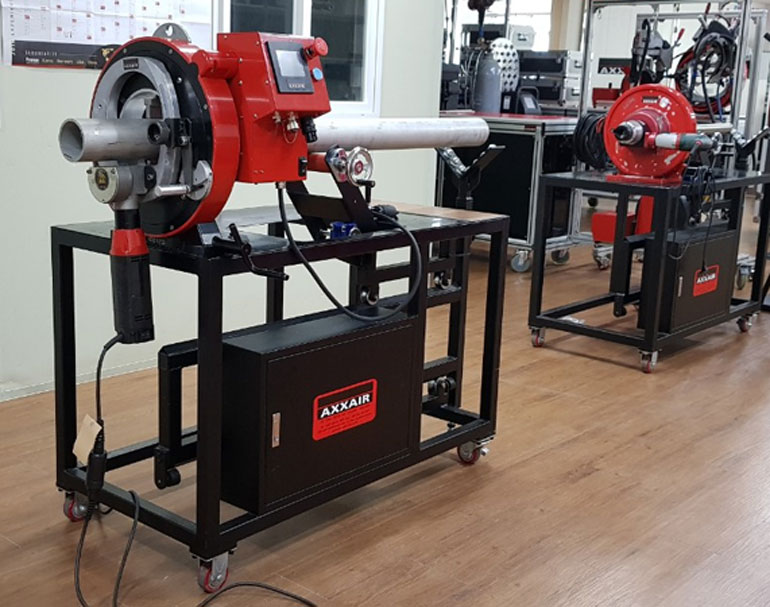

절단기 & 높이 조절 받침대
121ECO Cutting
- Technical Specifications

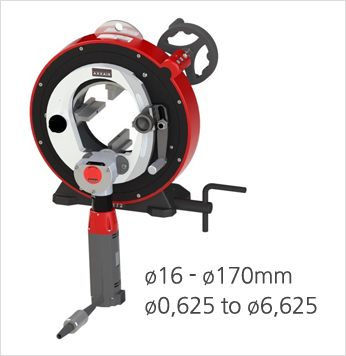

- - Basic stainless steel jaws Ø2,75 to Ø6,625(70 to 170 mm )
- - Additional jaws Ø0,625 to Ø4,65( 16 to 118mm)
- - Cutting precision: perpendicular cutting <0.25 mm
- - Scalability: may be transformed into a bevelling and orbital welding machine
- - Dual-output cutting motor with 2 blade positions for uptake
Weight : 44 kg (easy handling)
Blade-jaw distance of 2/13.5 mm. Limits vibration and tube distortion
Concentric clamping with 4 jaws in stainless steel, standard, to eliminate tube distortion
-
Motors: slow, fast, pneumatic
-
Rotation handle as standard : extends blade life and optimizes cutting quality

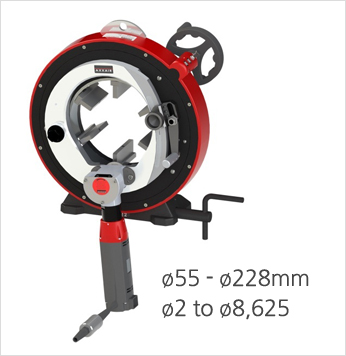

- Technical Specifications
- - Basic stainless steel jaws Ø4,55 to 8,625(Ø116 to Ø225mm)
- - Additional jaws Ø2 to Ø6,65(Ø59 to Ø169mm)
- - Cutting precision: perpendicular cutting <0.25 mm
- - Dual-output cutting motor with 2 blade positions for uptake
- - Scalability: may be transformed into a bevelling and orbital welding machine
Weight : 51 kg (easy handling)
Optimized Blade-jaws distance Limits vibration and tube distortion
-
Concentric clamping with 6 jaws in stainless steel, standard, to eliminate tube distortion
-
Motors: slow, fast, pneumatic
-
Rotation handle as standard: extends blade life and optimizes cutting quality
- Technical Specifications

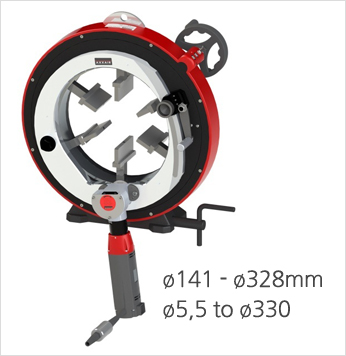

- - Basic stainless steel jaws Ø8,5 to 12,75(Ø216 to Ø330 mm)
- - Additional jaws Ø5,5 to Ø10(Ø140 to Ø256mm)
- - Cutting precision: perpendicular cuts < 0.25mm
- - Dual-output cutting motor with 2 blade positions for uptake
- - Scalability: may be transformed into a bevelling and orbital welding machine • Lifting eye
Weight : 73 kg (easy handling)
-
Optimized Blade-jaws distance Limits vibration and tube distortion
Concentric clamping with 8 jaws in stainless steel, standard, to eliminate tube distortion
-
Motors: slow, fast, pneumatic
-
Rotation handle as standard: extends blade life and optimizes cutting quality
321MS18 Cutting
