- Technical Specifications
- 오르비탈 수직절단
- - 버, 불꽃발생 없이 정확한 수직절단 가능
- - 쌔니타리, 반도체 배관 등 클린배관공사에 적합
- - 스테인레스 튜브 등 모든 파이프 절단
- - 간편한 이동, 설치 용이
- - 로테이션휠 기본장착으로 작업용이, 안전성 확보
- - 동심원 클랭핌: 얇고 작은 사이즈로 파이프도 변형없이 절단가능

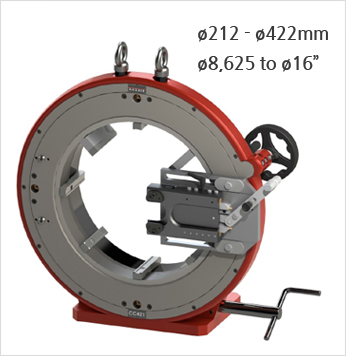

- - Basic stainless steel jaws Ø 12"to 16"(Ø 350 to Ø 420 mm)
- - Additional jaws Ø 8,625 to 12,75"(Ø 212 to Ø 352 mm)
- - Cutting precision: perpendicular cutting <0.4mm
Weight : 176 kg
Optimiszed blade-jaws distance Limits vibration and tube distortion
Concentric clamping with 8 jaws in stainless steel, standard, to eliminate tube distortion
Motors: electric and pneumatic
Rotation handle as standard: extends blade life and optimizes cutting quality
- Technical Specifications

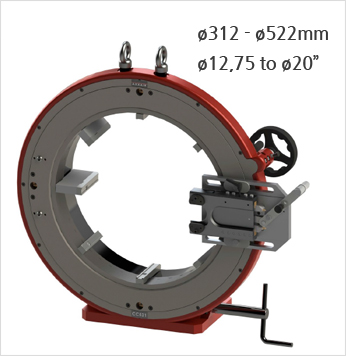

- - Basic stainless steel jaws Ø 15,5"to 20"(Ø 450 to Ø 522mm)
- - Additional jaws Ø 12,75"to 15,5"( Ø 312 to Ø 452mm)
- - Cutting precision: perpendicular cuts < 0.4mm
- - Dual-output cutting motor with 2 blade positions for uptake
- - Lifting eye
Weight : 200 kg
-
Optimiszed blade-jaws distance Limits vibration and tube distortion
-
Concentric clamping with 8 jaws in stainless steel, standard, to eliminate tube distortion
-
Motors: electric and pneumatic
-
Rotation handle as standard: extends blade life and optimizes cutting quality
- Technical Specifications

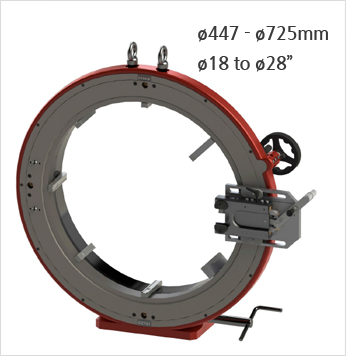

- - Basic stainless steel jaws Ø18"to Ø 28"(Ø653 to Ø 725mm)
- - Additional jaws Ø 12,75" to 18" (Ø 447 to Ø 654mm)
- - Cutting precision: perpendicular cutting < 0.4mm
- - Lifting eye
Weight : 245 kg
-
Optimiszed blade-jaws distance Limits vibration and tube distortion
-
Concentric clamping with 8 jaws in stainless steel, standard, to eliminate tube distortion
-
Motors: electric and pneumatic
-
Rotation handle as standard: extends blade life and optimizes cutting quality
- Technical Specifications

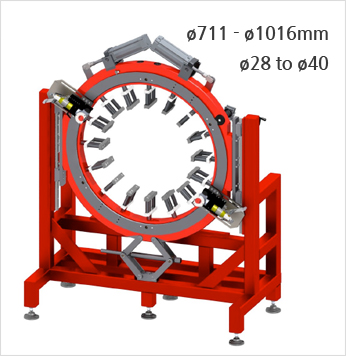

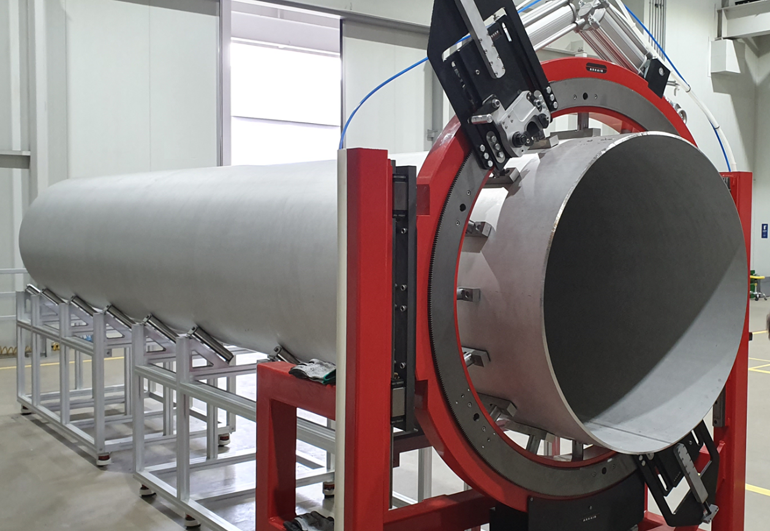

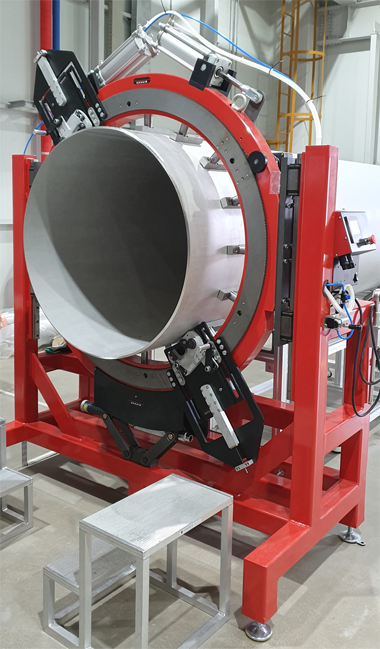

- - Basic stainless steel jawsØ 28"to 40"(Ø711 to Ø1016 mm)
- - Cutting precision: perpendicular cuts < 0.4 mm
Weight : 900 kg
Machine height adjustment machine
Concentric clamping with 16 jaws in stainless steel, standard, to eliminate distortion of thin tubes
Automatic pneumatic clamping
Rotation handle as standard: extends blade life and optimizes cutting quality
